UV Sterilizers > Emperor Aquatics SMART UV Lite ( 2" Body )
See other items in this category:

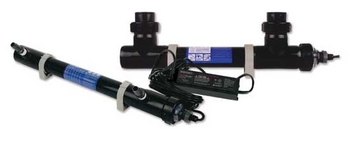

Emperor Aquatics SMART UV Lite ( 2" Body )

Emperor Aquatics SMART UV Lite ( 2
click image to view larger
Emperor Aquatics SMART UV Lite ( 2" Body )

We are not currently taking online orders. To order please call 724-869-3317. We are Western Pennsylvania's PREMIERE pond and water garden supplier.


Description

Emperor Aquatics SMART UV Lite ( 2
SMART UV Lite's models are designed for space conscious pond keepers with smaller ponds. Each SMART UV Lite is made of 2" UV resistant plastic, comes with a Lifetime UV Housing Warranty, and features their SMART BALLAST. Models are available with Socket, Barb and Union inlet/outlet ports.
SMART UV's are generally larger because they offer a greater UV Exposure Area. All SMART UV's are powered by the SMART BALLAST that operates the UV lamp at peak efficiency; providing optimal UV-C output and lamp life. Each SMART UV model positions the UV lamp completely between the inlet/ourlet ports to utilize the entire lamp length, unlike most competing UV brands.
Emperor AquaticsSuggested Flow Rates represent a UV transmissibility of 90% and consider the lamp's performance at the end of its useful lamp life. These two factors combined with truthful equipment capacity explain whythe flow rates are so much more conserative than many competitors recommended flow rates. All Emperor Aquatics UV equipment contains the highest quality, most efficient UV lamps available and are designed to utilize them to their maxium potential.
SMART UV Design is based on Established Engineering Guidelines found in the Bolton Photosciences, Inc. Ultraviolet Applications Handbook and the EPA Ultraviolet Disinfection Guidance Manual.
SMART UV Lite Performance
Model No.
Input Watts
UV-C Output Watts
No. /
Lamps
Flow Rate @ 90% UVT
Algae & Bacteria
30,000 Ws/cm2
Suggested / Maximum
Flow Rate @ 90% UVT
Protozoa
180,000 Ws/cm2
Suggested / Maximum
02218 18 5 1 / 18 219 GPH /
356 GPH
37 GPH /
60 GPH
02225 25 8 1 / 25 332 GPH /
554 GPH
55 GPH /
92 GPH
02240 40 14 1 / 40 589 GPH /
983 GPH
98 GPH /
164 GPH
02280 80 28 2 / 40 1,178 GPH /
1,967 GPH
196 GPH /
328 GPH
02218-W 18 5 1 / 18 219 GPH /
356 GPH
37 GPH /
60 GPH
02225-W 25 8 1 / 25 332 GPH /
554 GPH
55 GPH /
92 GPH
02240-W 40 14 1 / 40 589 GPH /
983 GPH
98 GPH /
164 GPH
02280-W 80 28 2 / 40 1,178 GPH /
1,967 GPH
196 GPH /
328 GPH

Water Flow Rates are based on: 90% UV Transmissibility
Suggested = UV Lamp @ 80% efficiency (after 9,000 hours of continuous operation)
Maximum = UV Lamp Power @ 100% efficiency (new condition).

SMART UV Lite Specifications
Model No.
Max.
Pond
Size
Max.
Aquarium
Size
UV Dimensions
Inlet / Outlet
Input Voltage
02218 1,100 Gal. 60 Gal. 21.75" x 2.5" 1.5" Union 120VAC 50/60Hz
02225 1,700 Gal. 90 Gal. 29.75" x 2.5" 1.5" Union 120VAC 50/60Hz
02240 2,900 Gal. 160 Gal. 44.75" x 2.5" 1.5" Union 120VAC 50/60Hz
02280 5,900 Gal. 330 Gal. 44.75" x 14" 1.5" Union 120VAC 50/60Hz
02218-W 1,100 Gal. 60 Gal. 21.75" x 2.5" 1.5" Union 120VAC 50/60Hz
02225-W 1,700 Gal. 90 Gal. 29.75" x 2.5" 1.5" Union 120VAC 50/60Hz
02240-W 2,900 Gal. 160 Gal. 44.75" x 2.5" 1.5" Union 120VAC 50/60Hz
02280-W 5,900 Gal. 330 Gal. 44.75" x 14" 1.5" Union 120VAC 50/60Hz

Aquarium & Pond Sizing is based on:
Maximum Aquarium = single pass/1 hour @ "Maximum" flow rate for Protozoa
Maximum Pond = single pass/3 hours @ "Maximum" flow rate for Algae & Bacteria
