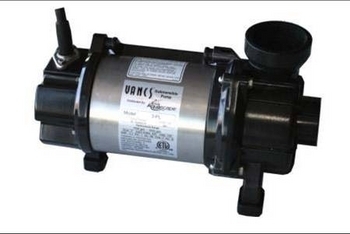

PL Pumps 3000 pump, 5000 pump, and 7,000 pump

 PL Pumps 3000 pump, 5000 pump, and 7,000 pump | Waterfall Pumps
click image to view larger
PL Pumps 3000 pump, 5000 pump, and 7,000 pump
Sale!
Ships Free!
Price: Was: 0.00 Now Only varies w/ options
Size
Qty:

Description

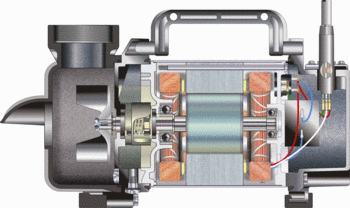

 PL Pumps 3000 pump, 5000 pump, and 7,000 pump | Waterfall PumpsThe PL series of pumps are known for their reliability, performance and value. The semi-vortex impeller design enables the pump to efficiently and effectively handle solids resulting in less maintenance and trouble-free performance. The built in thermal overload protects the pump from damage if ever run in a low water condition. Ideal for use in skimmer and falls filter systems as well as pondless applications.

* Hydraulically engineered for lower total dynamic head ranges typically found on water feature applications.
* Large 1.5" intake handles bigger solids and reduces maintenance over other pumps
* Motor Type: Direct Drive
* Power Cord Length: 20'
* Pump Discharge: 2"
* Warranty: 2-Year Limited

Pump Specs
3PL Pump - 3000 Pump
Maximum Flow Rate: 3,000 GPH
Maximum Head Height: 14'
Wattage: 320
Amperage: 3.1
Dimensions: 12.2"L x 5.6"W x 7.1"H
Maximum Operating Zone: 13'
BEST OPERATING Zone: 6' to 11' (1,700 GPH at 10')
DO NOT Operate Zone: 0' to 5' & 12' to 14'

5PL Pump - 5000 Pump
Maximum Flow Rate: 5,300 GPH
Maximum Head Height: 23'
Wattage: 620
Amperage: 5.6
Dimensions: 12"L x 6"W x 7"H
Maximum Operating Zone: 23'
BEST OPERATING Zone: 10' to 18' (3,500 GPH at 15')
DO NOT Operate Zone: 0' to 5' & 21' to 23'

9PL Pump - 7000 Pump
Maximum Flow Rate: 7,300 GPH
Maximum Head Height: 35'
Wattage: 1000
Amperage: 8.6
Dimensions: 14"L x 5.9"W x7.3"H
Maximum Operating Zone: 35'
BEST OPERATING Zone: 17' to 27' (4,100 GPH at 25')
DO NOT Operate Zone: 0' to 5' & 32' to 35'

See Replacement Parts for the following:
(30320) 3PL Replacement Impeller
(30321) 5PL Replacement Impeller
(30322) 9PL Replacement Impeller
(30323) 3PL Replacement Casing
(30324) 5PL/9PL Replacement Casing
(30212) 3PL Replacement Oil
(30213) 5PL/9PL Replacement Oil
