PN Pumps 5500 pump and 10,000 pump
click image to view larger
| PN Pumps 5500 pump and 10,000 pump
PN Pumps are a reliable time-tested pump. The PN series pumps are hydraulically engineered for lower dynamic head ranges typically found on water feature applications. The semi-vortex impeller design enables the pump to efficiently and effectively handle solids resulting in less maintenance and trouble-free performance. The built in thermal overload protects the pump from damage if ever run in low water conditions. Ideal for use in Aquascape and other skimmer and water falls filter systems as well as the Pondless waterfall vault applications.
The PN Series Pumps feature:
* Large 1.5" intake to handle bigger solids and reduce Maintenance over other pumps
* Direct Drive Motor Type
* 20' Power Cord Length
* 2-Year Limited Warranty

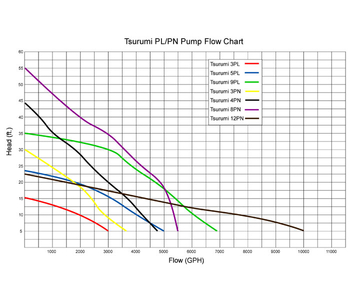

PN Pump Specs.
8 PN - 5500 Pump
The 8 PN is engineered for higher head applications
Maximum Flow Rate: 5548 GPH
Maximum Head Height: 56'
Pump Discharge Diameter: 2"
Dimensions: 9.3"L x 6.4"W x 15"H
Maximum Operating Zone: 55'
BEST OPERATING Zone: 20' to 38' (4300 GPH at 25')
DO NOT Operating Zone: 0' to 12' & 45' to 55'

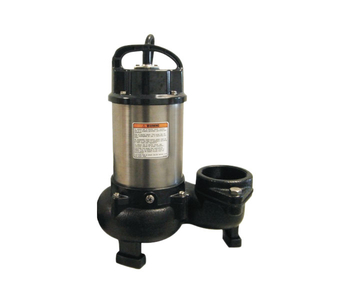

12PN - 10,000 Pump
The 12 PN Pump is hydraulically engineered to provide high flow rate
performance on lower head applications.
Maximum Flow Rate: 10,000 GPH
Maximum Head Height: 23'
Pump Discharge Diameter: 3"
Dimensions: 11.7"L x 7.7"W x 15.1"H
Maximum Operating Zone: 24'
BEST OPERATING Zone: 7' to 16' (7600 GPH at 10')
DO NOT Operating Zone: 0' to 3' & 18' to 23'
See Replacement Parts for repair parts for the PN Pumps
