Description You get what you pay for, is a phrase that "shines" when describing UV units. Not all are created equal... That is why we chose to market the Emperor Aquatics line of UV Sterilizers. We have found them to be of a higher quality and are not over-rated as their performance. Of the SMART UV STERILIZER line we carry in house the 25 & 40 watt units (02025 & 02040). All other units will be shipped directly from the manufacturer.
|

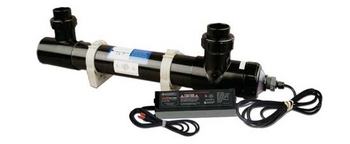

SMART UV Sterilizers, our flagship UV line, feature a 3" UV housing that utilizes their standard-output lamps' UV-C
output to its maximum potential. SMART UV Sterilizers offer a heavy-wall UV resistant body and come with a Lifetime UV Housing Warranty*. Our SMART BALLAST drives the lamp(s) at peak efficiency which ensures maximum UV-C output, as well as expected useful life. SMART UV Sterilizer Wiper models feature our exclusive "One-Piece" Wiper/Power Assembly for quick and easy servicing.
*Warranted against manufacturer defects and UV degradation of the plastic housing. |
|
NOTE: SMART UV Sterilizers with Wipers are indicated with a "-W" suffix in the model number.
Mounting clamps are sold seperately.
|
Model No. |
Input Watts |
UV-C Output Watts |
No. /
Lamps |
Flow Rate @ 90% UVT
Algae & Bacteria
30,000 Ws/cm2
Suggested / Maximum |
Flow Rate @ 90% UVT
Protozoa
180,000 Ws/cm2
Suggested / Maximum
|
| 02025 |
25 |
8 |
1 / 25 |
472 GPH /
788 GPH |
79 GPH /
131 GPH |
| 02040 |
40 |
14 |
1 / 40 |
943 GPH /
1,574 GPH |
157 GPH /
262 GPH |
| 02065 |
65 |
25 |
1 / 65 |
1,710 GPH /
2,855 GPH |
285 GPH /
476 GPH |
| 02080 |
80 |
28 |
2 / 40 |
1,885 GPH /
3,148 GPH |
314 GPH /
525 GPH |
| 02130 |
130 |
50 |
2 / 65 |
3,420 GPH /
5,711 GPH |
570 GPH /
952 GPH |
|
| 02025-W |
25 |
8 |
1 / 25 |
472 GPH /
788 GPH |
79 GPH /
131 GPH |
| 02040-W |
40 |
14 |
1 / 40 |
943 GPH /
1,574 GPH |
157 GPH /
262 GPH |
| 02065-W |
65 |
25 |
1 / 65 |
1,710 GPH /
2,855 GPH |
285 GPH /
476 GPH |
| 02080-W |
80 |
28 |
2 / 40 |
1,885 GPH /
3,148 GPH |
314 GPH /
525 GPH |
| 02130-W |
130 |
50 |
2 / 65 |
3,420 GPH /
5,711 GPH |
570 GPH /
952 GPH |
Water Flow Rates are based on: 90% UV Transmissibility
Suggested = UV Lamp @ 80% efficiency (after 9,000 hours of continuous operation)
Maximum = UV Lamp Power @ 100% efficiency (new condition).
|
Model No. |
Max.
Pond
Size |
Max.
Aquarium
Size |
UV Dimensions |
Inlet / Outlet |
Input Voltage |
| 02025 |
2,400 Gal. |
130 Gal. |
29" x 3.5" |
1.5" Union |
120VAC 50/60Hz |
| 02040 |
4,700 Gal. |
260 Gal. |
43.75" x 3.5" |
1.5" Union |
120VAC 50/60Hz |
| 02065 |
8,600 Gal. |
480 Gal. |
70.5" x 3.5" |
1.5" Union |
120VAC 50/60Hz |
| 02080 |
9,400 Gal. |
530 Gal. |
44.5" x 15.5" |
1.5" Union |
120VAC 50/60Hz |
| 02130 |
17,100 Gal. |
960 Gal. |
71.5" x 15.5" |
1.5" Union |
120VAC 50/60Hz |
|
| 02025-W |
2,400 Gal. |
130 Gal. |
29" x 3.5" |
1.5" Union |
120VAC 50/60Hz |
| 02040-W |
4,700 Gal. |
260 Gal. |
43.75" x 3.5" |
1.5" Union |
120VAC 50/60Hz |
| 02065-W |
8,600 Gal. |
480 Gal. |
70.5" x 3.5" |
1.5" Union |
120VAC 50/60Hz |
| 02080-W |
9,400 Gal. |
530 Gal. |
44.5" x 15.5" |
1.5" Union |
120VAC 50/60Hz |
| 02130-W |
17,100 Gal. |
960 Gal. |
71.5" x 15.5" |
1.5" Union |
120VAC 50/60Hz |
Aquarium & Pond Sizing is based on:
Maximum Aquarium = single pass/1 hour @ "Maximum" flow rate for Protozoa
Maximum Pond = single pass/3 hours @ "Maximum" flow rate for Algae & Bacteria
If you have any questions regarding SMART UV Sterilizers and which style is best suited for your application please feel free to send us an e-mail here: SMART UV Sterilizer Questions.
|
